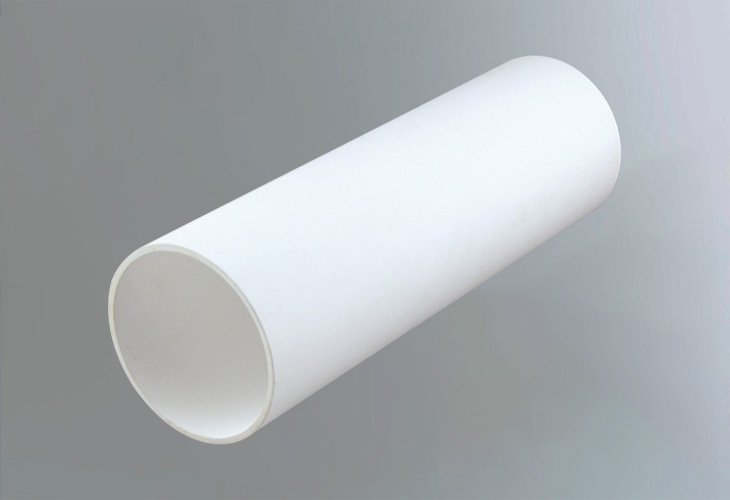

Porous ceramic membrane tube and plate for electrolysis

【Place of Origin】:Yixing, Jiangsu

【Application】:Electrolytic production of medical disinfection water, ammonia persulfate, etc

【Email】:stysied@jiangsuceramics.com

【Tel】:86-510-87183775 / 87185940

87183710 / 87438766

product details

It is made of imported alumina by isostatic pressing and high temperature sintering. The product has high resistance of acid and alkali.

The ceramic membrane is used to divide the anode chamber and cathode chamber of the electrolytic cell. Typically applied to:

NaClO electrolysis to form NaOH and HClO.

NaCl electrolysis to form NaOH and HCl.

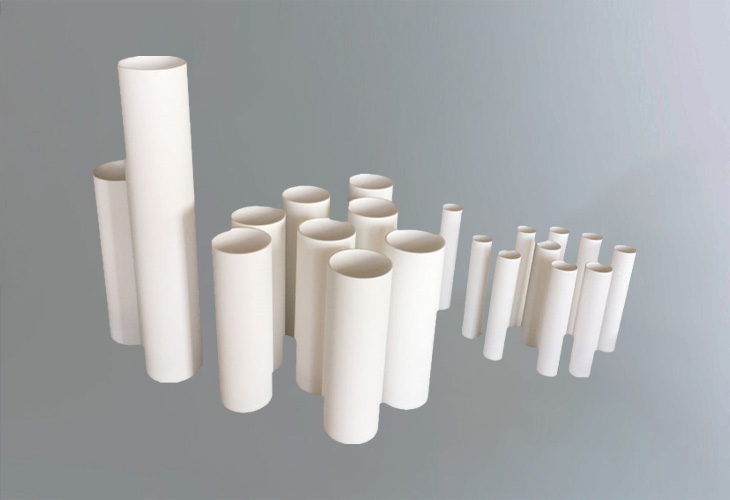

Existing size:

∅28x250mm

∅48.5x180mm

∅97x298mm

∅102x600mm

∅234x575mm

203x303x4mm

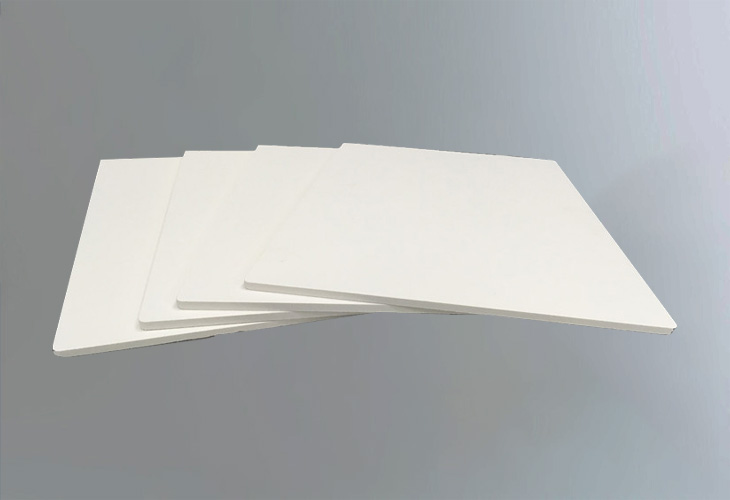

The diaphragm plate is arranged between the anode and cathode to separate the products of the anode and cathode. It is a porous permeable barrier, which does not hinder the migration of ions and the passage of current, and makes them flow to the corresponding electrode at a certain speed. At the same time, it can effectively prevent the mechanical mixing between cathode and anode products.

At present, the product is mainly used in the production of medical disinfection water and ammonia persulfate by electrolysis. Pore diameter and porosity can be customized according to requirements.


FAQ:

  • 1.How can I get a quote?
  • You can send drawings with technical requirements and mark the quantity you need to purchase. It would be better if you could provide information about the use of the product.
  • We will confirm the most suitable materials and offer you the most favorable price within 24 hours.
  • 2.Can you accept OEM and ODM?
  • Yes, we can produce products according to your requirements and drawings.
  • 3.Can you provide free samples?
  • Depending on the situation, we can provide samples for small products free of charge, but the freight and mold fees shall be borne by you. High value products cannot be provided free of charge due to cost problems.
  • 4.What is the lead time for samples?
  • Ready made products are within 3-7 days, and customized samples are generally within 15-45 days.
  • 5.How many days is the production cycle for bulk orders?
  • It usually takes 30-45 days, and 45-60 days in peak season.
