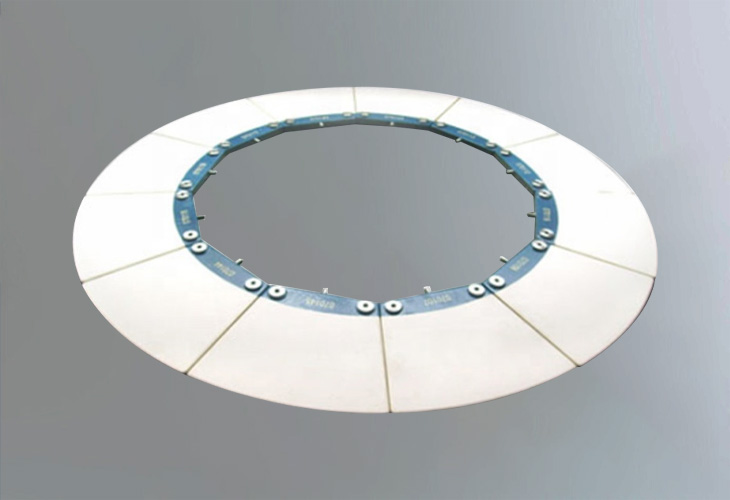

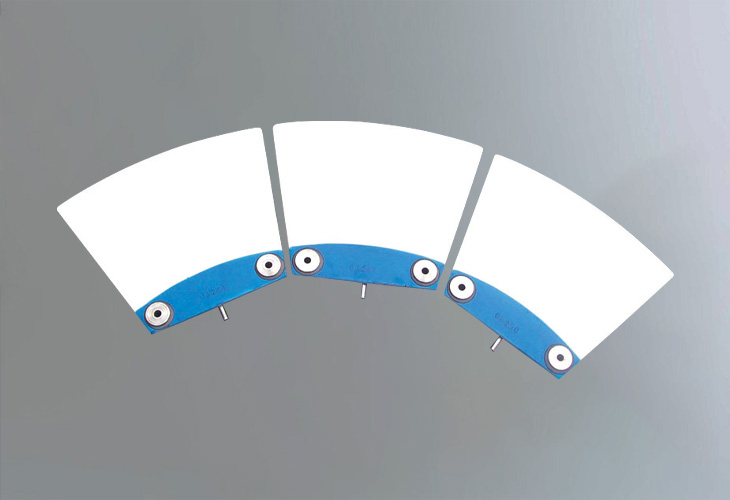

Ceramic filter plate for filter

【Place of Origin】:Yixing, Jiangsu

【Application】:Dewatering and filtration in nonferrous metal mines, fine clean coal, chemical industry and other industries

【Email】:stysied@jiangsuceramics.com

【Tel】:86-510-87183775 / 87185940

87183710 / 87438766

product details

Ceramic electrolyzer is also called electrolytic ceramic cylinder, plain burning cylinder (barrel), electrolytic ceramic diaphragm, trivalent chromium ceramic bladder, ceramic bladder, regenerative ceramic tank, trivalent chromium electrolytic machine, etc.

It is formed by grouting and high-temperature sintering.

Electrolytic ceramic diaphragm is a device for regenerating the roughening solution of plastic electroplating, which is widely used in electroplating manufacturers. In particular, the high-end quality requirements for plastic electroplating are high, such as automotive plastic parts, bathroom parts, etc. The plain burning cylinder can prevent the aging of the roughing solution, reduce the trivalent chromium concentration in the roughing solution, maintain a good roughing effect, reduce the production cost and greatly reduce the environmental pollution of chromic acid.

In addition, in the production of decorative chromium and hard chromium, the principle of electrolysis can better remove the impurity cations in the plating solution and reduce the trivalent chromium concentration in the plating solution, so as to improve the quality of electroplating products and prolong the service life of the plating solution.

Existing size:

Cylinder: Ф 100x500mm, Ф 210×650mm

Square cylinder: 500×390x80mm,500x160x80mm,1000x100x60mm,600x398x80mm

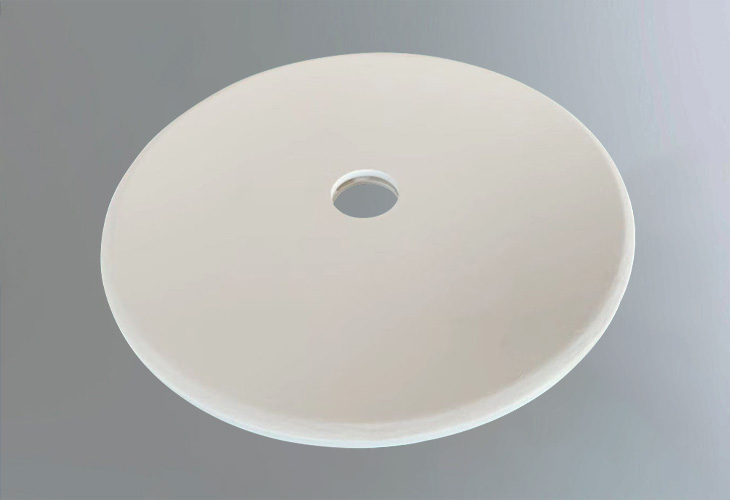

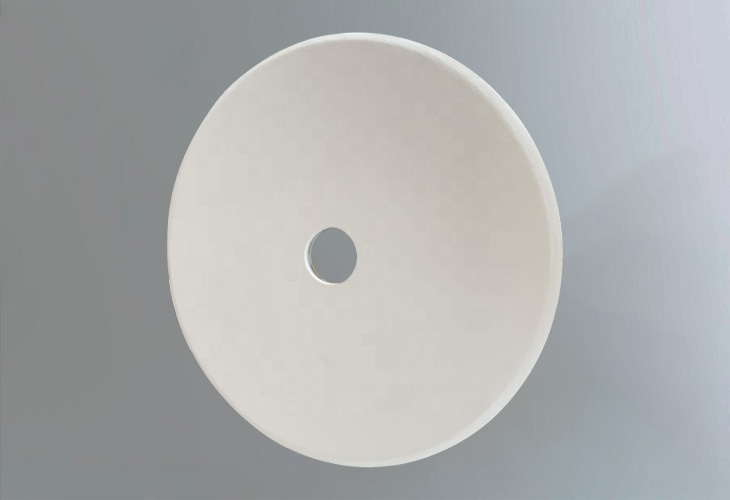

Rotating ceramic disc membrane for flitration,concentration and air flotation equipment. It is a new and more effective enhanced membrane separation technology, with slow attenuation of membrane flux and long continuous and stable filtration time. It is very suitable for the concentration and filtration of high concentration materials and high solid content materials. The solid content can be concentrated to more than 90%. The cross flow filtration with high-speed rotation can effectively prevent the blocking of the filter membrane

Rotating membrane is a high-precision fluid separation equipment. It effectively combines the principle of centrifuge and cross flow construction. It not only has nanometer filtration precision, but also has excellent energy-saving effect. Double sided filtration, high efficiency, stability, easy to clean, convenient for later maintenance.

Existing dimensions: ∅ 330x14, ∅ 374x6mm, ∅ 520x18mm,

Aperture: 200nm, 500nm, 1 μ mm

Buyers at home and abroad are welcome to place orders. Hotline: 0510-87183775

FAQ:

  • 1.How can I get a quote?
  • You can send drawings with technical requirements and mark the quantity you need to purchase. It would be better if you could provide information about the use of the product.
  • We will confirm the most suitable materials and offer you the most favorable price within 24 hours.
  • 2.Can you accept OEM and ODM?
  • Yes, we can produce products according to your requirements and drawings.
  • 3.Can you provide free samples?
  • Depending on the situation, we can provide samples for small products free of charge, but the freight and mold fees shall be borne by you. High value products cannot be provided free of charge due to cost problems.
  • 4.What is the lead time for samples?
  • Ready made products are within 3-7 days, and customized samples are generally within 15-45 days.
  • 5.How many days is the production cycle for bulk orders?
  • It usually takes 30-45 days, and 45-60 days in peak season.
